3d Laser Marker
3D LASER MARKER
● Three dimensional surface marking function,Ensure that the focus is fine in the 0-60mm height range,Consistent marking effect; ● Large format marking function,The maximum marking area reached 400-400mm,Break through the traditional optical fiber marking machine marking size limit; < ● Advanced digital three axis dynamic focusing technology,Marking speed,Zoom control real time high,Uniform focal spot; ● Modular design concept,Compatible with domestic and international mainstream fiber laser,Strong product adaptability; ● Adopt marble work platform, have good high vibration and stress resistance, good flatness, high stability; ● Powerful software, can be imported mainstream 3d design output
  • Series of parameters
  • Model is introduced
  • Applicable materials and industries

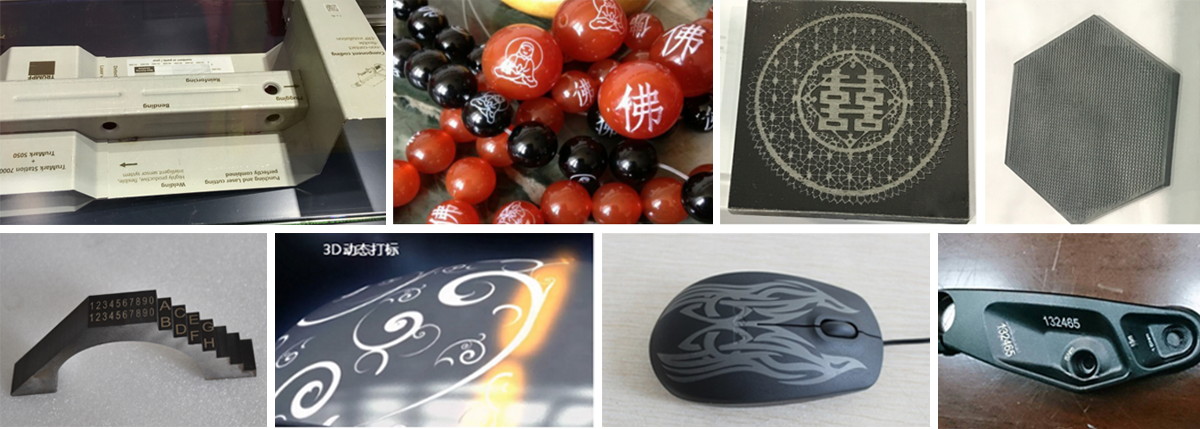

  • Sample images
  • Model

     XR-FD20

    XR-FD30

     XR-FD50

     XR-FD100

     laser power

    20W

    30W

    50W

    100W

    Power demand

    AC220V±10%,50Hz

    Processing format

    110mm*110mm/175mm*175mm/300mm*300mm

    Marking speed

    0-7000mm/s

    Power

    500W

    700W

    1000W

    1800W

    Graphic format support

    BMP、GIF、JPEG、PLT、DXF、AI等

    work environment

    Temperature: 10-30,Humidity: 5-85%Non condensing water,No dust or dust

    Marking method

    XYZ three axis dynamic focusing

     Cooling mode

    Air cooling

    operating system

    WinXP/Win7/ all 3D view operation



    ● Three dimensional surface marking function,Ensure that the focus is fine in the 0-60mm height range,Consistent marking effect; ● Large format marking function,The maximum marking area reached 400-400mm,Break through the traditional optical fiber marking machine marking size limit; < ● Advanced digital three axis dynamic focusing technology,Marking speed,Zoom control real time high,Uniform focal spot; ● Modular design concept,Compatible with domestic and international mainstream fiber laser,Strong product adaptability; ● Adopt marble work platform, have good high vibration and stress resistance, good flatness, high stability; ● Powerful software, can be imported mainstream 3d design output
    Electronic components: relay, electronic IC, ceramic resistance, mobile phone light transmission button and other surface identification text; Computer peripheral products: keyboard, transparent board, U disk, and other surface identification text; Hardware: clock accessories, gift jewelry, auto accessories.
